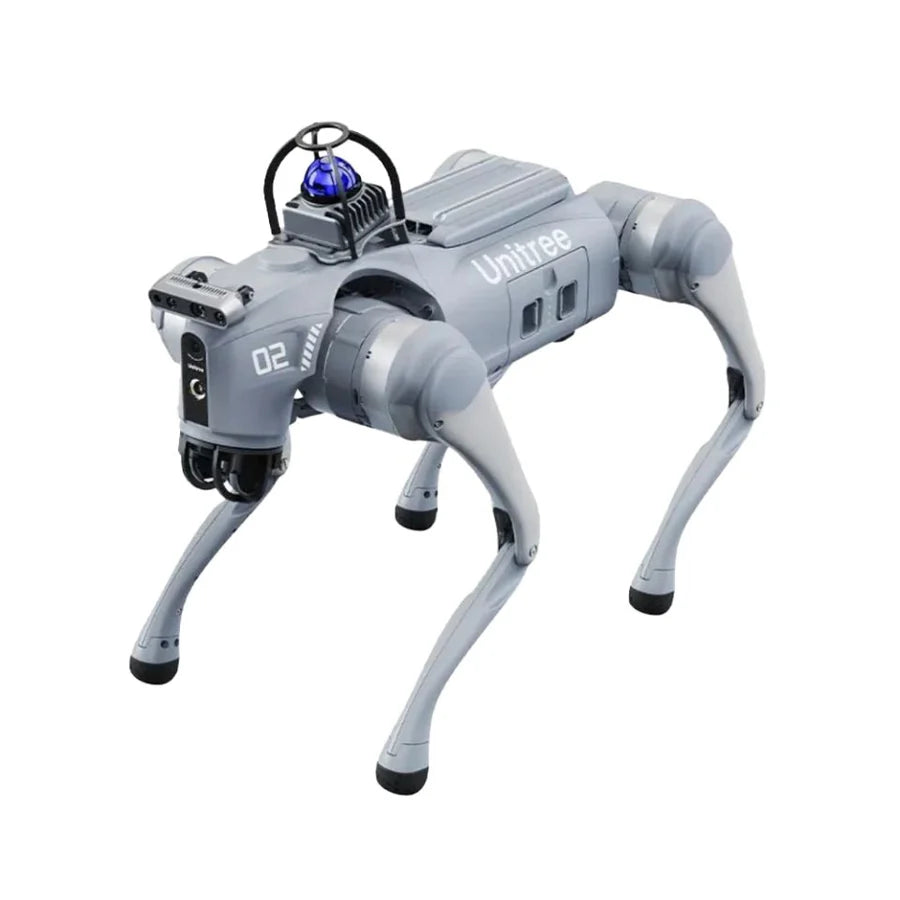

The Unitree Go2 Edu is designed for your school lab and classroom. Housed by a Docking Station, The Go2 Edu has an extra Jetson Orin Nano board and extra I/O ports allowing software development for your robotic education programs.
The D1 Arm is compatible with the Go2 Edu and Go2 Ent series.
Specifications:
Material: | Aluminium Alloy + High Strength Engineering Plastic |
Voltage: | 28~33.6V |
Max Power Output: | 3,000W |
Payload: | 8 ~12kg |
Max Speed: | 3.7~5m/s |
Max Climb Drop Height: | 16cm |
Max Climb Angle: | 40° |
Max Torque: | 45N.m |
Range Of Motion: | Body -48~48°, Thighs -200~90°, Shank -156~48° |
Smart Battery: | 15,000 mAh |
Battery Life: | 2~4 hours |
Fast Power Charger: | 33.6V, 9A |
Dimensions: | L: 70cm W: 31cm H: 40cm |

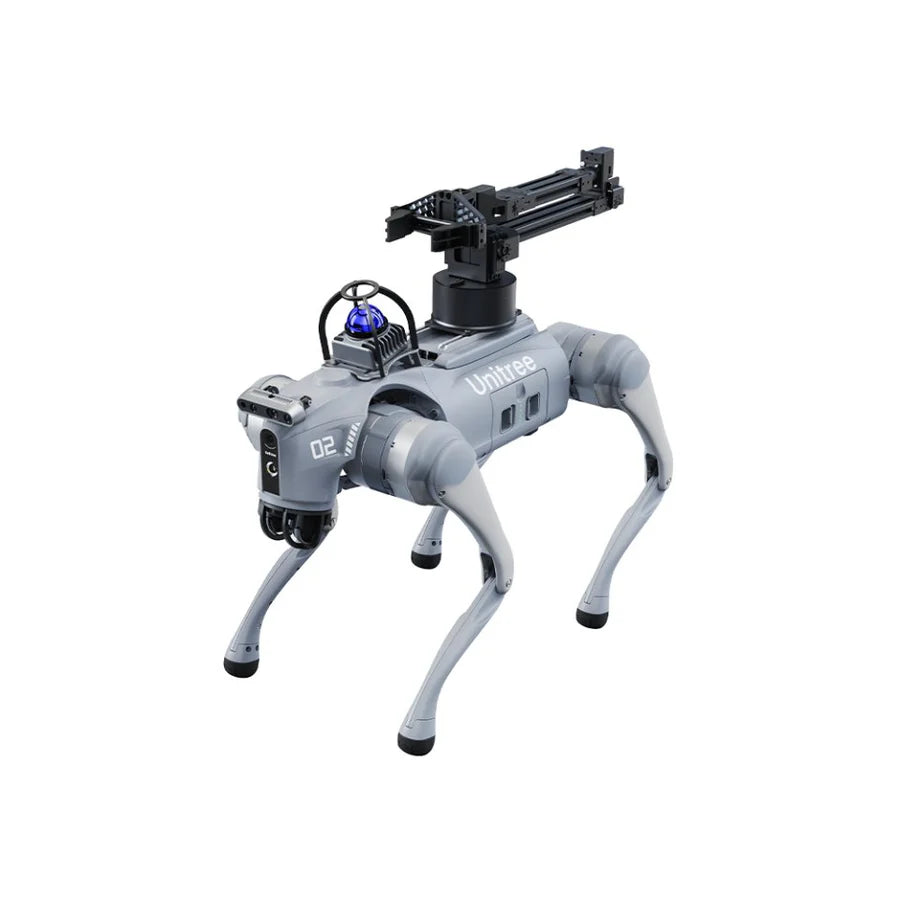

Unitree Go2 Servo Robotic Arm D1
- Unitree Go2 Servo Robotic Arm D1
- Payload: 500 g
- Offers six degrees of freedom and one jaw-clamp
- Control interface: RJ45
- Power: 60 W
- Operates at 24V with a maximum current of 2.5A
Specification:
- Degree of freedom: 6 degrees of freedom + 1 jaw clamp
- Payload: 500 g
- Maximum arm span
- Approx. 495 - 550 mm (excluding jaw length, minor variations may occur with subsequent structural changes)
- Approx. 620 - 670 mm (including the length of the jaws, subsequent structural changes may have a small range of changes)
- Power Requirement: 24 V 2.5 A (MAX 5A)
- Interface: DC 5.5 - 2.1
- Power: 60 W
- Control interface: control communication interface RJ45
- Joint parameters
- J1 ±135°
- J2 ±90°
- J3 ±90°
- J4 ±135°
- J5 ±90°
- J6 ±135°
Livox MID-360 |
Dimensions |
65×65×60 mm |
Weight: |
265 g |
FOV: |
Horizontal 360° Vertical -7°~52° |
Point Rate: |
200,000 points/s (first return) |
Frame Rate: |
10 Hz (typical) |
Power: |
6.5 W (average) |
Power Supply Voltage Range: |
9 ~ 27 V DC |
