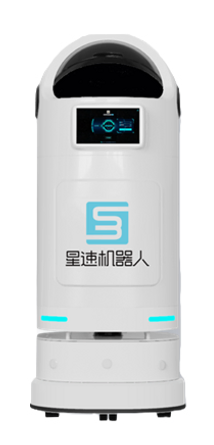

S3D1 is a contactless delivery robot that achieves end-to-end automation, saving labor and improving work efficiency. It can deliver a range of items and greatly enhances safety during epidemic prevention and control.
Hardware Specification
Material: ABS, metal iron
- Dimensions: 393 x 398 x 1078mm (L x W x H)
- Net weight: 43kg (including battery)
- Screen size: 7 inches
- Screen resolution: 1280 x 800
- CPU: Dual-core Cortex-A72 plus quad-core Cortex-A53, 64-bit six-core processor
- Memory: 2+16G
- Smart system: Customized Android version
- Network support: Full network 4G
- Speaker: High-fidelity speaker with ultra-low bass
- Sensors:
- Integrated ultrasonic sensor
- Fall prevention sensor
- Ultrasonic obstacle avoidance sensor
- Collision sensor
- Cargo capacity: Double cargo container, up to 35L
- Autonomous navigation system: Laser radar (25m)
- Environment map drawing: SLAM scanning
- Moving speed: 0-0.7m/s
- Climbing angle: 5°
- Vertical crossing: 20mm
- Horizontal crossing: 40mm
- Tires: Anti-slip rubber tires, suitable for use on granite, carpet, etc.
- Omni-directional wheel
- Operating temperature: 0-40℃
- Operating humidity: 30%-70%
- Operating environment: Indoor use only, no excessive dust, no corrosive odors
- Battery capacity: 24V16Ah
- Charging voltage: 24V/6A
- Charging method: Automatic contact charging/manual emergency charging
- Automatic charging: Infrared induction automatic charging
- Charging pile: 100-240v~50/60Hz, 5A Max
- Charging pile size: 355 x 150 x 320mm (L x W x H)
- Charging time: ≤3 hours
- Operating time: ≤4.5 hours (continuous operation on full charge), automatically returns to recharge in case of no delivery task/low battery status
- Status indicator light: Smart control LED light strip
- Safety emergency stop button: Rear of the chassis
- Remote control: Remote control
- Collision strip: 180° at the front of the chassis
