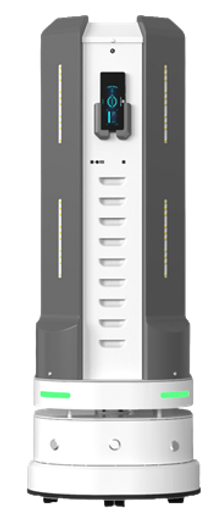

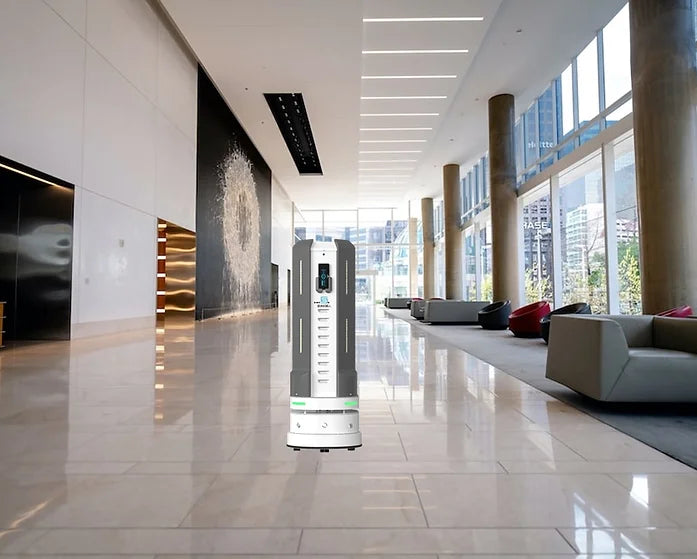

The UV-C LED Ultraviolet Disinfection Robot is an indoor, autonomous mobile disinfection robot. Built on the foundation of intelligent mobile robot technology, the robot is equipped with a new UV-C LED ultraviolet disinfection and indoor air purification solution to achieve efficient disinfection and sterilization of indoor surface materials and air purification.
Hardware Specification
- Material: Metal iron, aluminum alloy
- Size: 404 x 390 x 1100mm (LWH)
- Weight: 50kg (including battery)
- Network support: 4G/Wi-Fi
- Operating device: 5.05 inch Android phone
- UV-C LED and performance
- LED: Luminus XBT-3535
- Quantity: 8 sets of 24
- Direction: 130° Optical power: 80MW
- Single point disinfection time: ≥10min
- Single point disinfection range: ≤1m

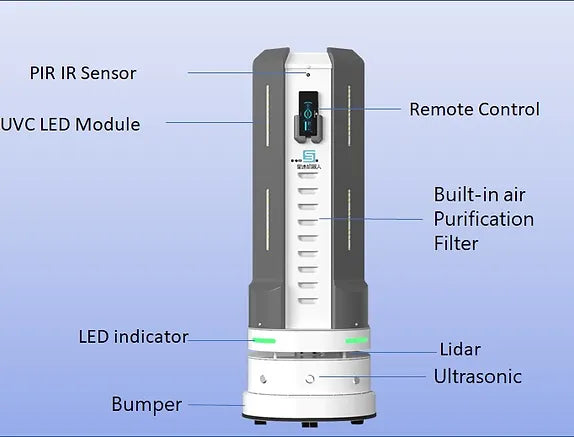

- Sensors
- Integrated ultrasonic sensor
- Anti-fall sensor
- Ultrasonic obstacle avoidance sensor
- Collision sensor
- PIR infrared sensor
- Activated Carbon: Modified activated carbon
- Filter: H13 HEPA filter
- Autonomous navigation system: Laser radar (25m)
- Environment map drawing: Using SLAM scanning
- Movement speed: 0-0.7m/s
- Climbing angle: 5°
- Vertical overpass: 20mm
- Horizontal overpass: 40mm
- Tires: Anti-skid rubber tires, omnidirectional wheel
- Operating temperature: 0-40℃
- Operating humidity: 30%-70%
- Operating environment: Indoor use only, with little dust and no corrosive or odorous gases
- Battery capacity: 24V16Ah
- Charging voltage: 24V6A
- Charging mode: Automatic/manual
- Automatic charging: Infrared sensing automatic charging
- Charging pile: 100-240v~50/60Hz, 5A Max
- Charging pile size: 355 x 150 x 320mm (LWH)
- Charging time: ≤3 hours
- Operating time: 2 hours, with automatic return charging when low power
- Status indicator light: Smart control LED light bar
- Control system: Industrial-grade control calculation system
- Emergency stop button: Rear of the chassis
- Remote control: Remote control
- Collision strip: Front 180° of the chassis
